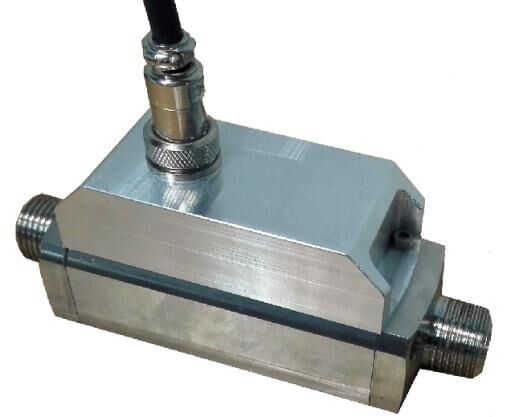

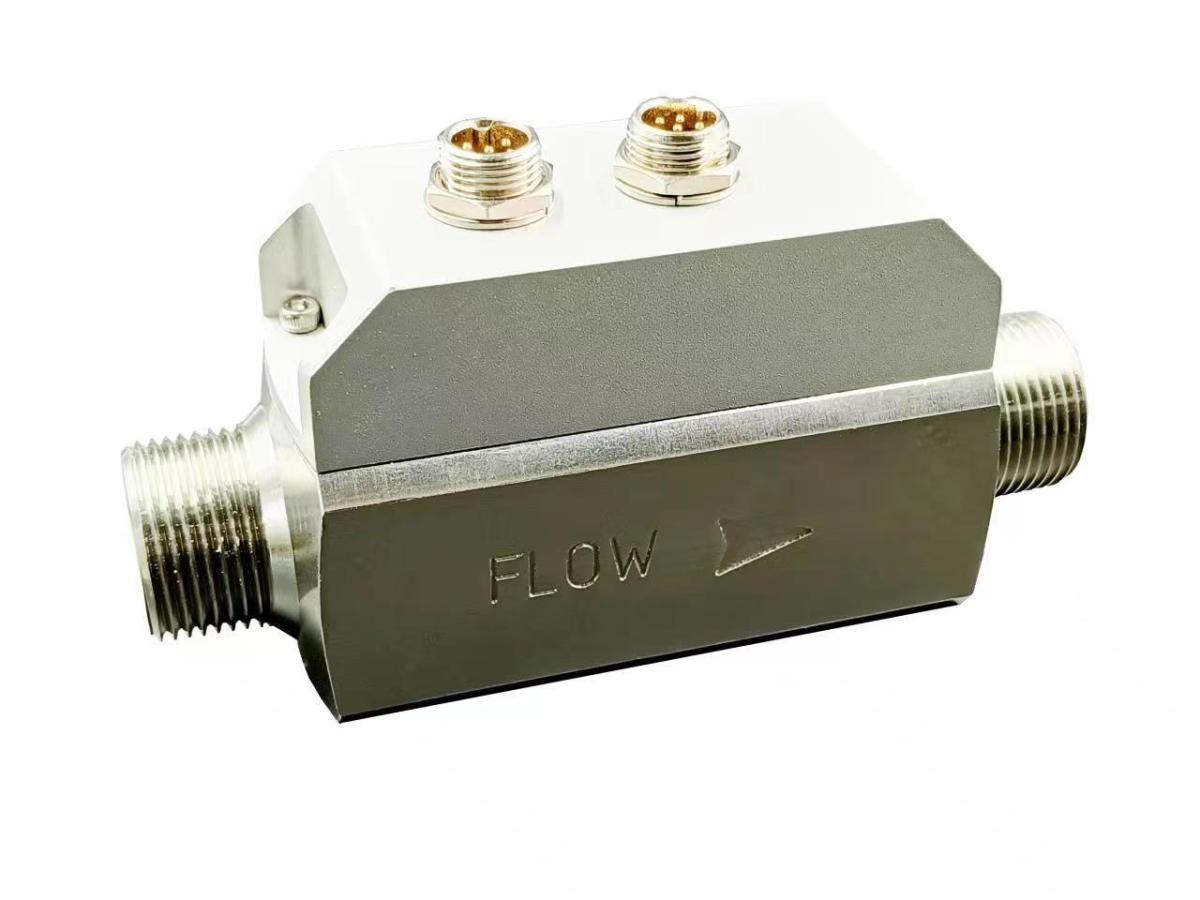

Description

The gas mass flow sensor is made of micro electro mechanical system (MEMS)  flow sensor chip, which is suitable for clean, relatively dry gas flow measurement and  process control for various purposes.

The unique packaging technology makes the product  meet different range of flow measurement, ensuring high sensitivity, high reliability, high  stability and low cost.

It is based on MEMS flow sensing unit and high-precision digital processing  and calibration circuit (MCU). The integrated Δ - Σ A / D converter, logic circuit with  internal calibration function and MCU processor ensure the real-time and effective  acquisition of sensing signal, obtain accurate flow signal, and process the corresponding  compensation algorithm internally, so there is no need for any external calibration  compensation,Can ensure high-precision flow output; friendly digital output  communication mode, users can easily get the corresponding data information; product  application range is very broad.

Applications

■ Industry ■ Medical ■ Petroleum ■ Gas ■ Chemical Industry ■ Smelting ■ Food  Processing ■ Instrumentation ■ Electromechanical Equipment

Features

 High precision (1.5% F.S accuracy)

 Linear output and no temperature compensation

 Maintain long-term stability with minimum zero drift

 Fast response time (20 ms response time)

 The flow rate range is 0-60m/s wide and the impact resistance is 100g.

 Solid-state sensing core (no surface void or fragile membrane), anti-blocking and  pressure shock

 Analog output (1-5 V) (Digital I2C communication output available)

 Can adapt to relatively humid gas measurement

 Working temperature: - 25 ° C to 85 ° C, storage temperature: - 40 ° C to 90 ° C,  humidity: 0 ~ 100% RH

 The sensor is resistant to condensation

Performance Parameter

Linear Output

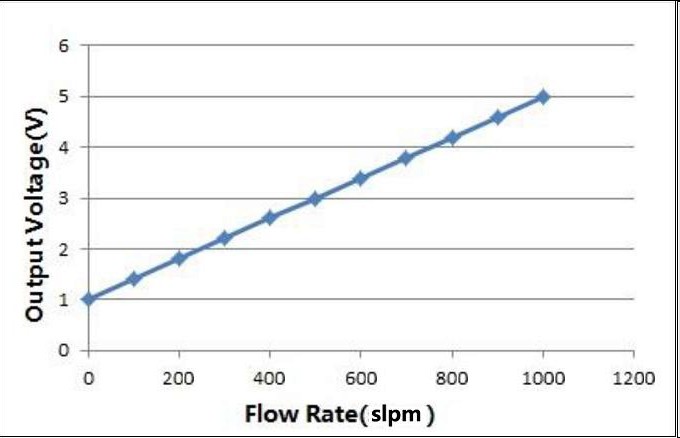

Flow = [(VOUT -1 V) / 4 V] × full scale flow

For example: S5025AV has a full-scale traffic of 1000slpm.

When the output voltage is read at 2.5V, the instantaneous flow rate is  [（2.5V-1V）/4V×1000slpm] =375 slpm

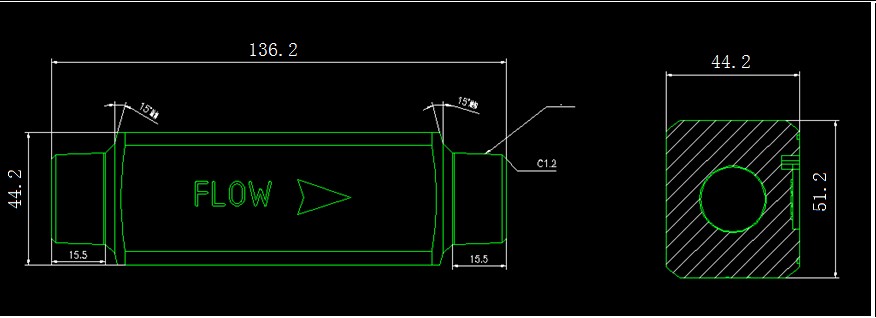

Dimensions
