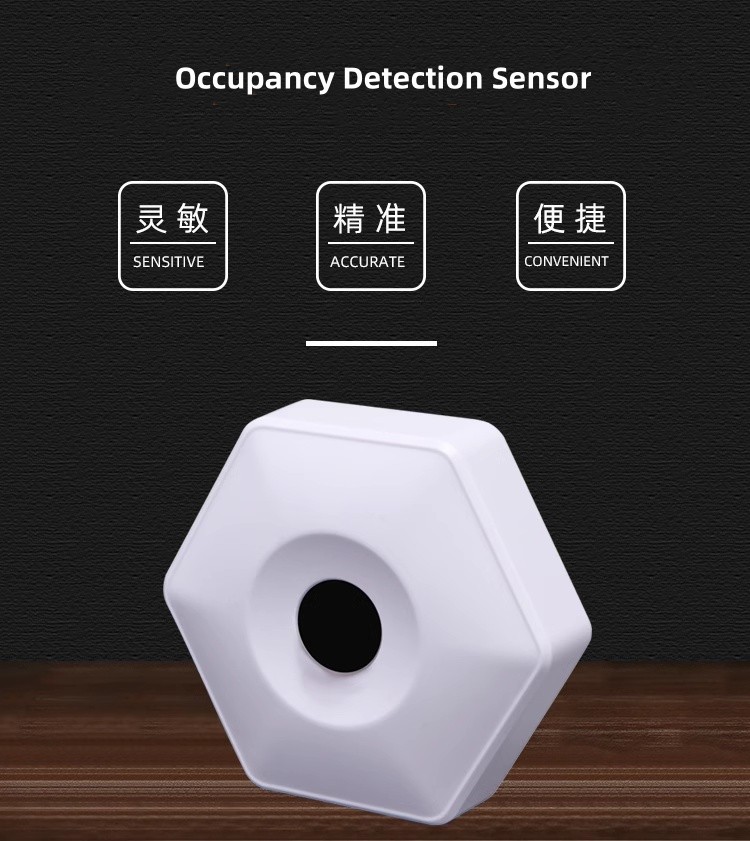

1. Description

The crouching position sensor (laser, side) is used as an on-site collection slave station. According to the standard MODBUS-RTU communication protocol RS485 digital signal output upload,

compatible with a variety of host computer configuration software.

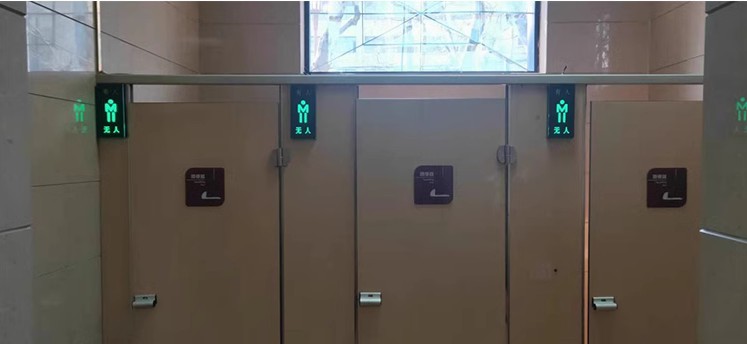

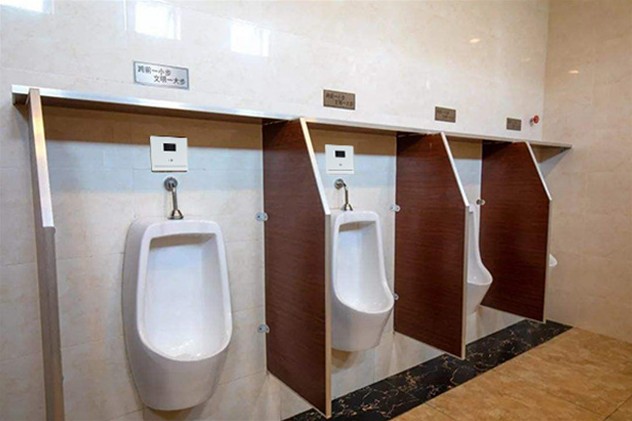

Can be widely used in IoT environment monitoring fields such as smart shopping malls, public toilets, stations and terminals...

2. Index indicator

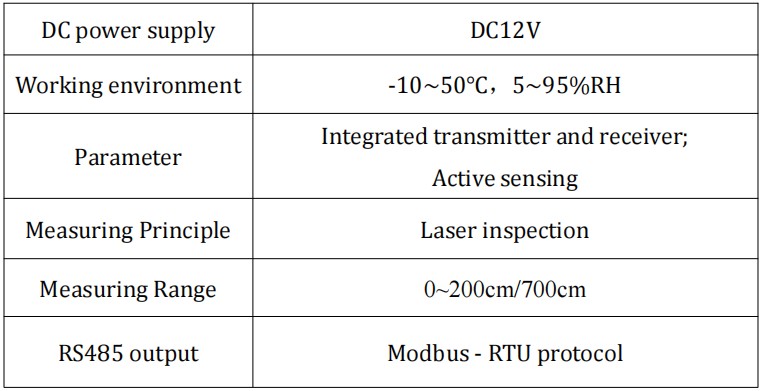

Type: Laser

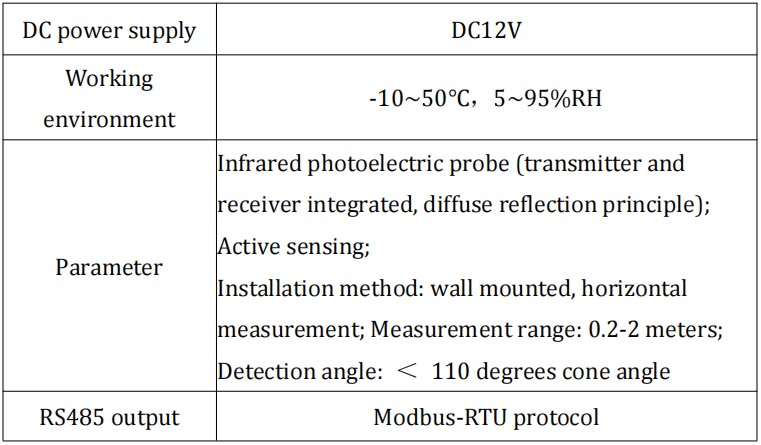

Type: Infrared

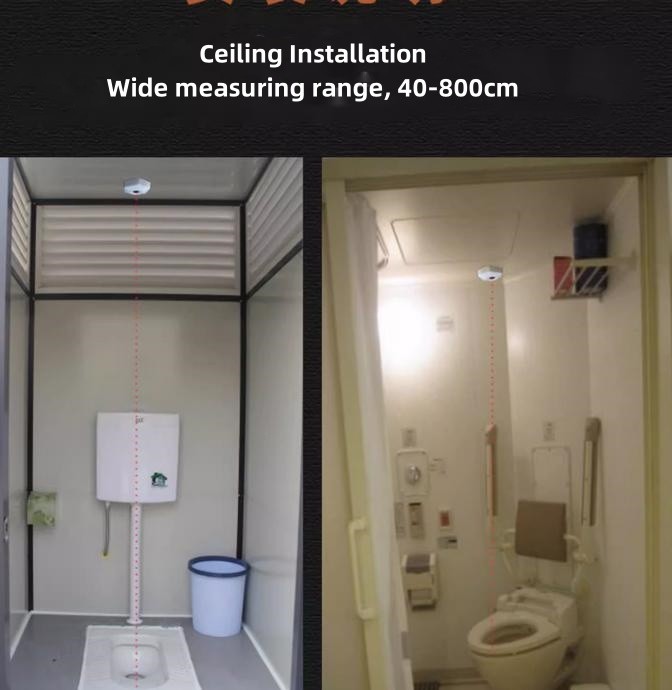

3. Installation and debugging

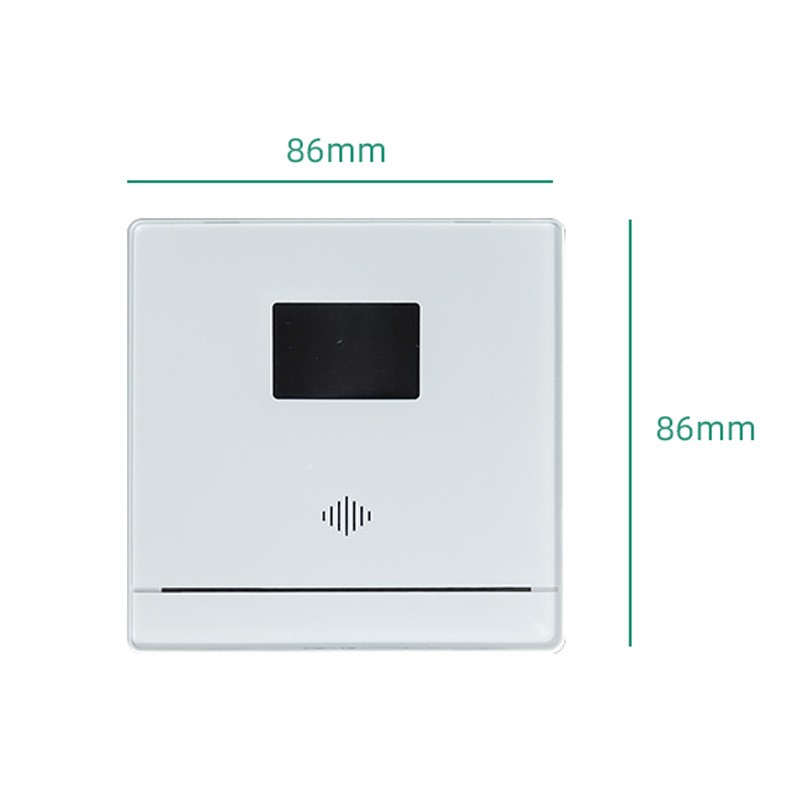

Dimensions: 89*89cm

Wiring instructions

Cable definition:
①Red line: DC 12V power supply+
②Black wire: power ground (GNG)
③Yellow line: RS485-A
④Blue line: RS485-B

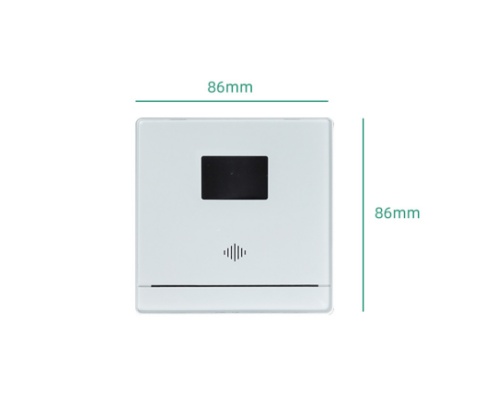

Concealed Installation Type
