LCD Dispaly Mass Gas Flow Meters - SF5025

Learn more about product details

PRODUCT DESCRIPTION

Description

SF5025 gas mass flow meter is made of MEMS flow sensor chip, which is applicable to clean and relatively dry gas flow measurement and process control for various purposes. The unique packaging technology makes the product meet different range of flow measurement, ensuring high sensitivity, high reliability, high stability and low cost.

SF5025 is based on MEMS flow sensing unit and high-precision digital processing and calibration circuit (MCU) Δ-Σ A/D converter, logic circuit with internal calibration function and MCU processor jointly ensure that the sensing signal is effectively collected in real time, accurate flow signal is obtained, and the corresponding compensation algorithm is processed internally. Therefore, no external calibration compensation is required to ensure high-precision flow output;

Friendly digital output communication mode, users can easily get the corresponding data information through communication;

The product has a wide range of applications.

Product features

￭ High accuracy (1.5% F.S accuracy)
￭ Linear output and no temperature compensation
￭ Maintain long-term stability with minimum zero drift
￭ Rapid response time (65 ms response time)
￭ The velocity range is 0-60m/s wide, and the impact resistance is 100g
￭ Solid state sensing core (no surface voids or fragile film), resistant to blocking and pressure shock
￭ Analog output (1-5 V) (digital RS485 communication output can be provided)
￭ Be able to adapt to relative humidity gas measurement
￭ Working temperature: - 25 ° C to 85 ° C, storage temperature: - 40 ° C to 90 ° C, humidity: 0~100% RH
￭ The sensor is resistant to condensate

Application

￭ Industry
￭ Medical treatment
￭ Oil
￭ Instruments and meters
￭ Gas
￭ Chemical industry
￭ Smelting
￭ Food processing
￭ Mechanical and electrical equipment

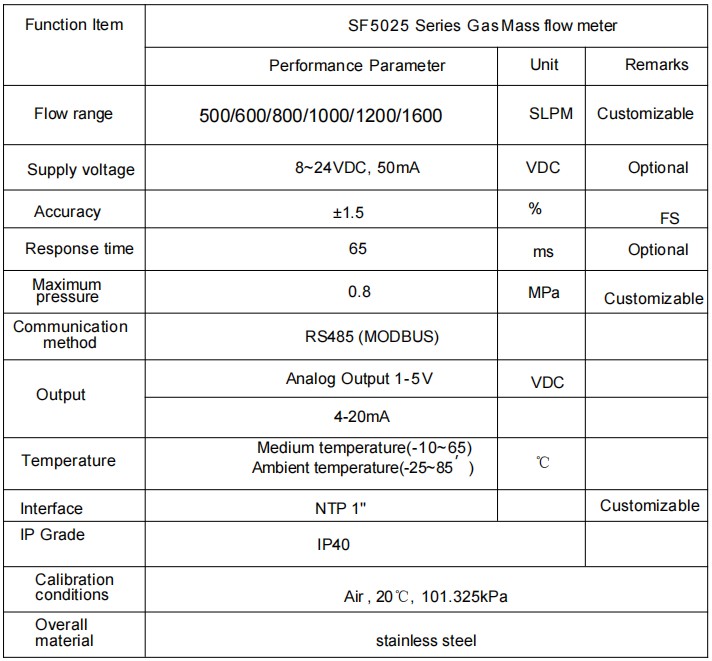

Performance parameters
