The S5000 series industrial mass airflow meter is designed specifically for general gas flow measurement,
This flowmeter can be used for various gas flow measurements such as process control, equipment matching, analytical instruments, and atmospheric sampling.
The flow meter is based on Micro Electro Mechanical Systems (MEMS) technology, and the chip adopts the characteristics of integrating multiple sensors. It is an intelligent all electronic gas mass flow meter developed with high sensitivity, high precision, and large range ratio; This product also has its unique advantages in installation and maintenance, with universal interfaces, resistance to condensation water, and a greatly expanded range of applications;
It can be widely used in various fields such as industry, petrochemical oil and gas recovery, gas, chemical industry, smelting, energy...

Features
High accuracy (1.5% F.S accuracy);
Linear output and no temperature compensation required;
Maintaining long-term stability with minimal zero drift;
Rapid response time (20 ms response time);
The flow rate range is wide from 0 to 60m/s, and the impact resistance is 100g;
Solid state sensing core (without surface voids or fragile films), resistant to blockages and pressure shocks;
Analog output (1 to 5 V) (can provide digital I2C communication output);
Able to adapt to measurement of relatively humid gases;
Working temperature: -20 ° C to 65 ° C, storage temperature: -40 ° C to 85 ° C, humidity: 0-100% RH;
The sensor is resistant to condensation water;

Application
Industrial, Medical, Petroleum, Gas, Chemical, Smelting, Food Processing, Instrumentation, Mechanical and Electrical Equipment

Performance Parameter

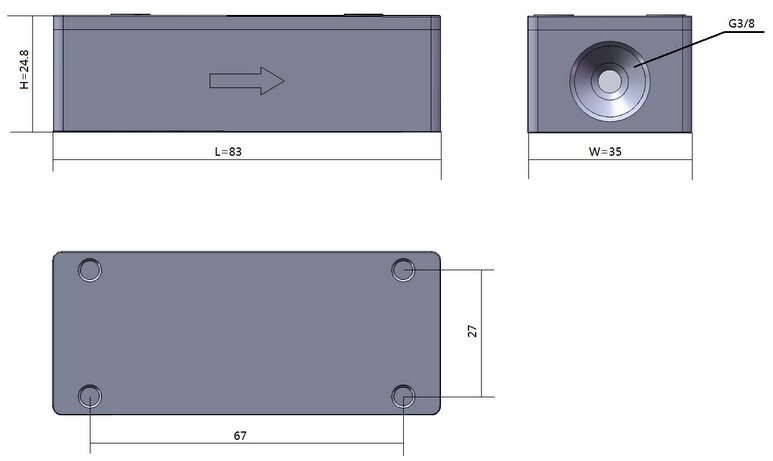

Dimension
