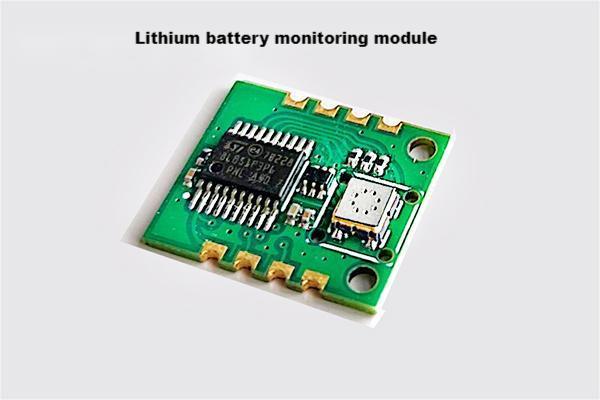

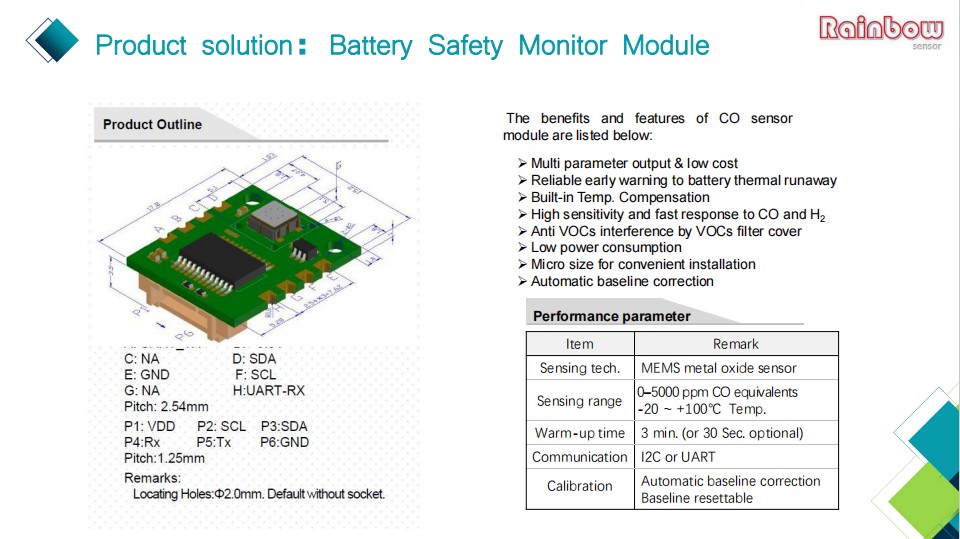

MEMS based Thermal Runaway Sensor in Battery Packs Detection

1. Range:
0-5000 ppm CO equivalents
0-5000 ppm H2 equivalents
-20 ~ +100℃ temperature

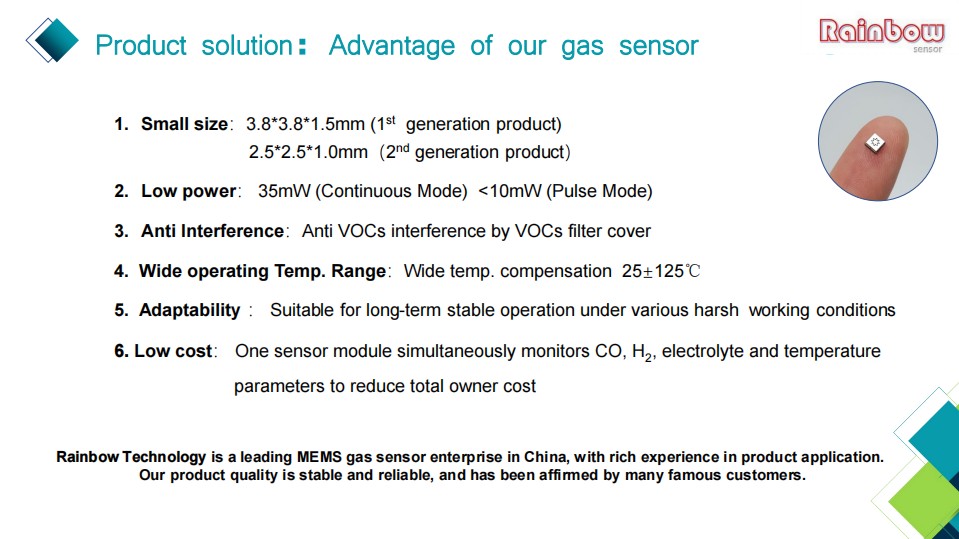

2. Small size: 17.8mm×15.2mm×6.5mm

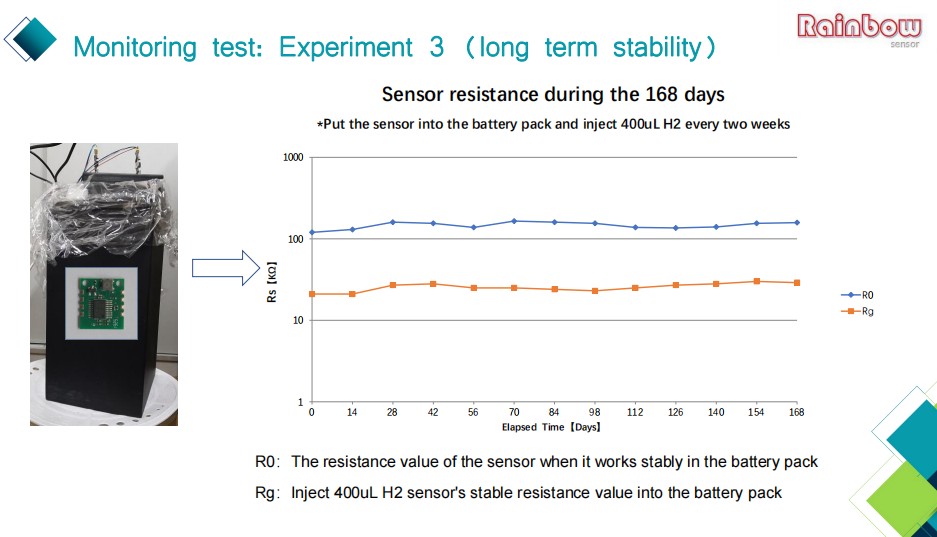

3. Lifetime: >5 years
4. Adaptability: Suitable for long-term stable operation under various harsh working conditions
5. Low cost: One sensor module simultaneously monitors CO, H2, electrolyte and temperature parameters to reduce total owner cost
