1. Purpose of Airflow Control in a BESS

Airflow in a BESS enclosure is vital for:

• Thermal management: Maintaining even cell temperatures and preventing hotspots.

• Safety ventilation: Removing gas emissions or smoke during thermal events.

• Environmental balance: Preventing condensation and humidity buildup inside the pack.

The MEMS air-flow sensor doesn’t drive air — it provides real-time flow feedback to the control system (BMS/EMS), enabling closed-loop control of fans, blowers, or valves.

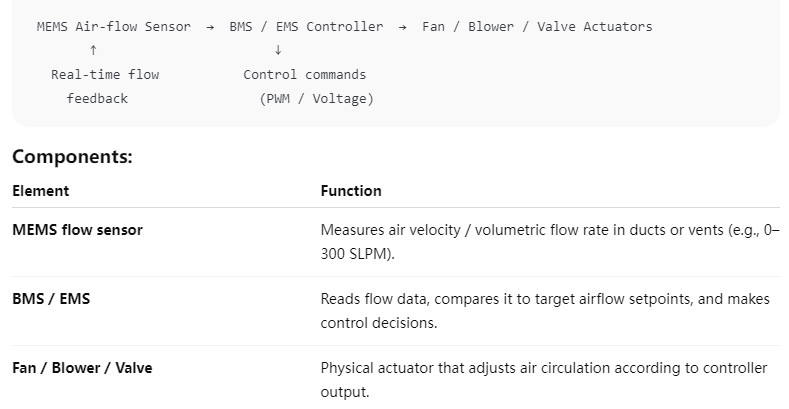

2. Control Architecture Overview

3. Closed-Loop Control Logic

1. Measurement
   The MEMS flow sensor continuously measures airflow at the inlet, outlet, or ventilation ducts of the battery cabinet.

2. Signal Processing
   The sensor outputs either:

   • Analog voltage (1–5 V) proportional to flow rate, or

   • Digital I²C signal for direct data exchange.

3. Feedback to BMS/EMS
   The control unit reads the flow signal and compares it to the desired airflow range defined for a given temperature or system state.

4. Control Adjustment

   • If airflow < target, the controller increases fan/blower speed (via PWM or voltage command).

   • If airflow > target, the controller slows down the fans to save energy and reduce noise.

   • If airflow suddenly changes, it may indicate obstruction, filter clogging, or vent opening—triggering diagnostic or safety actions.

5. Continuous Optimization
   The system keeps adjusting airflow dynamically based on:

   • Real-time temperature distribution from cell sensors.

   • Flow sensor readings at multiple points.

   • Battery load or state-of-charge (to anticipate heat generation).

4. Example Use Cases

🔹 A. Thermal Management Loop

• Sensors measure air distribution across battery modules.

• Controller adjusts individual fan speeds to balance airflow and maintain uniform temperature.

• Prevents cell-to-cell temperature gradient and extends lifetime.

🔹 B. Ventilation During Thermal Event

• When gas sensors detect vented gases (H₂, CO, VOCs), the system opens vent valves.

• MEMS flow sensors confirm that airflow through exhaust ducts increases as expected.

• If airflow does not rise → the controller detects a blockage and triggers a secondary exhaust fan or alarm.

🔹 C. Efficiency Optimization

• During low-load operation or cool ambient conditions, the controller reduces airflow to minimize power consumption.

• MEMS sensors ensure minimal airflow is still maintained to avoid localized heat buildup.

5. Advantages of MEMS Air-Flow Sensors in BESS

MEMS air-flow sensors enable intelligent, closed-loop control of ventilation in BESS systems.
By providing fast, accurate feedback of airflow, they allow the BMS/EMS to automatically regulate fans, blowers, and valves — optimizing cooling, improving safety, and increasing energy efficiency.
